2SA1494 Transistor

2SA1494 - POWER TRANSISTORS

Application : Audio and General Purpose

Type Designator: 2SA1494
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 200 W
   Maximum Collector-Base Voltage |Vcb|: 200 V
   Maximum Collector-Emitter Voltage |Vce|: 200 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 17 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 20 MHz
   Collector Capacitance (Cc): 500 pF
   Forward Current Transfer Ratio (hFE), MIN: 50
   Noise Figure, dB: -

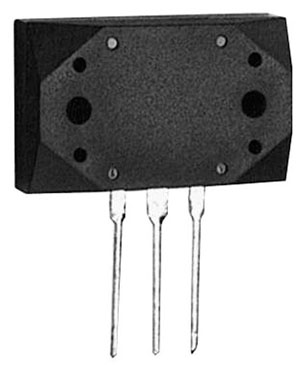

   Package: MT200
