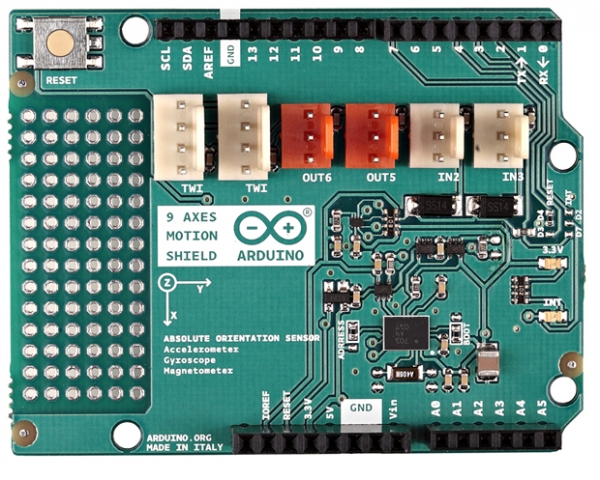

Arduino 9 Axis Motion Shield
40,00 €
In Stock
SKU: A000070-ARD
Measure acceleration, orientation, and magnetic field with this high-tech Arduino shield.
Arduino 9 Axis Motion Shield
The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor from Bosch Sensortec GmbH which integrates a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second and a triaxial geomagnetic sensor with a 32-bit microcontroller running the BSX3.0 FusionLib software.
The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes.
Documentation
OSH: Schematics
Arduino Uno is open-source hardware! You can build your own board using the following files:
