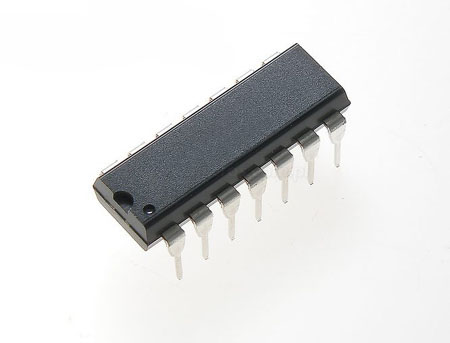

DM7409N Circuito Integrato

DM7409N IC

Quad 2-Input AND Gates with Open-Collector Outputs

General Description
This device contains four independent gates each of which performs the logic AND function. The open-collector outputs require external pull-up resistors for proper logical operation.
