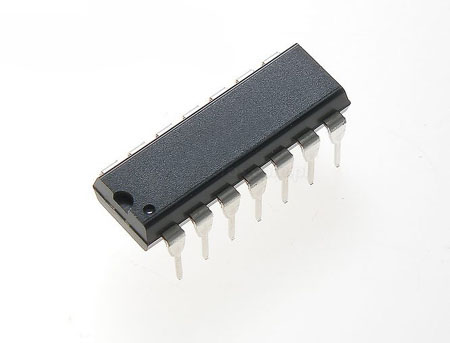

SN74HC14N Circuito Integrato

74HC14N IC

Hex inverting Schmitt trigger

General description

• The 74HC14; 74HCT14 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard No. 7A.
• The 74HC14; 74HCT14 provides six inverting buffers with Schmitt-trigger action. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Features and benefits

• Low-power dissipation
• ESD protection:
• HBM EIA/JESD22-A114F exceeds 2000 V
• MM EIA/JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

Applications

• Wave and pulse shapers
• Astable multivibrators
• Monostable multivibrators
