G10T60 IGBT IGP10N60T

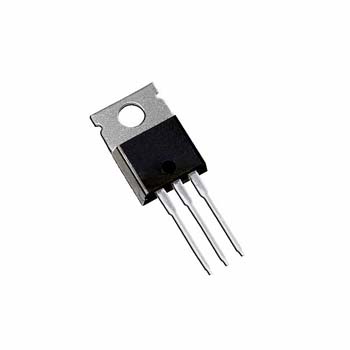

G10T60 IGBT TO220 IGP10N60T

Descrizione

 Type Designator: IGP10N60T

   Type: IGBT

   Marking Code: G10T60

   Type of IGBT Channel: N

   Pcⓘ - Maximum Power Dissipation: 110 W

   |Vce|ⓘ - Maximum Collector-Emitter Voltage: 600 V

   |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V

   |Ic|ⓘ - Maximum Collector Current: 24 A @25℃

   |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.5 V @25℃

   |VGEth|ⓘ - Maximum G-E Threshold Voltag: 5.7 V

   Tjⓘ - Maximum Junction Temperature: 175 ℃

   trⓘ - Rise Time, typ: 8 nS

   Coesⓘ - Output Capacitance, typ: 40 pF

   Qgⓘ - Total Gate Charge, typ: 62 nC

   Package: TO220

compatibile con IGP10N60T
