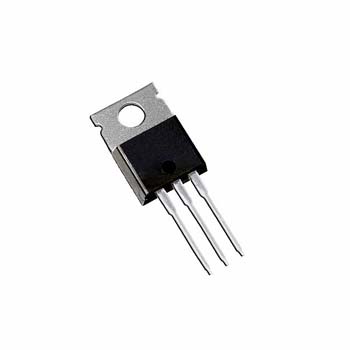

HGTP20N60A4 IGBT Transitor
HGTP20N60A4-JTX

HGTP20N60A4 IGBT Transitor

3,93 €
Only 13 in stock
SKU: HGTP20N60A4-JTX
HGTP20N60A4 IGBT Chip N-CH 600V 70A TO-220
  • Transistor Type:IGBT
  • Max Voltage Vce Sat:2.7V
  • Collector-to-Emitter Breakdown Voltage:600V
  • SVHC:Cobalt dichloride
  • Alternate Case Style:SOT-249
    •  Torna a: IGBT

    HGTP20N60A4 IGBT Chip N-CH 600V 70A TO-220

    Descrizione
    • IGBT, N, TO-220
    • Transistor Type: IGBT
    • DC Collector Current: 70A
    • Collector Emitter Voltage Vces: 2.7V
    • Power Dissipation Pd: 290W
    • Collector Emitter Voltage V(br)ceo: 600V
    • Transistor Case Style: TO-220AB
    • No. of Pins: 3
    • SVHC: No SVHC (20-Jun-2011)
    • Current Ic Continuous a Max: 70A
    • Current Temperature: 25°C
    • Fall Time tf: 32ns
    • Full Power Rating Temperature: 25°C
    • No. of Transistors: 1
    • Package / Case: TO-220AB
    • Pin Format: GCE
    • Power Dissipation Max: 290W
    • Power Dissipation Pd: 290W
    • Power Dissipation Pd: 290W
    • Power Dissipation Ptot Max: 290W
    • Pulsed Current Icm: 280A
    • Rise Time: 12ns
    • Termination Type: Through Hole
    • Transistor Polarity: N Channel
    • Voltage Vces: 600V
