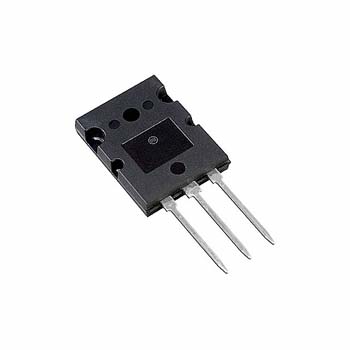

2SC5200 Transistor NPN
2SC5200-XAR

2SC5200 Transistor NPN

2,29 €
Only 10 in stock
SKU: 2SC5200-XAR
2SC5200 Transistor
High-Fidelity Audio Output Amplifier
With TO-264 package
Complement to 2SA1943
 Torna a: Transistor

2SC5200 Transistor

 Type Designator: 2SC5200
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 150 W
   Maximum Collector-Base Voltage |Vcb|: 250 V
   Maximum Collector-Emitter Voltage |Vce|: 250 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 17 A
   Forward Current Transfer Ratio (hFE), MIN: 55
   Noise Figure, dB: -
   Package: TO264

Power Amplifier Applications

  • High breakdown voltage: VCEO = 230 V (min)
  • Complementary to 2SA1943
  • Suitable for use in 100-W high fidelity audio amplifier’s output stage
