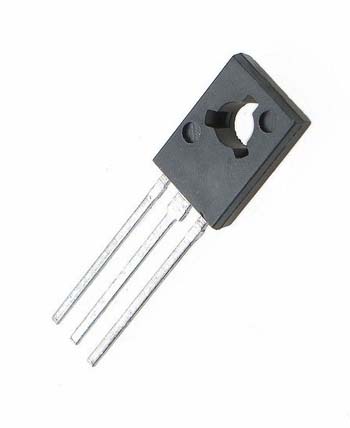

2SD882 Transistor NPN
2SD882-XAR

2SD882 Transistor NPN

0,51 €
Only 5 in stock
SKU: 2SD882-XAR
2SD882 Transistor
The device is a NPN transistor manufactured by using planar technology resulting in rugged high performance devices.
The complementary PNP type is 2SB772.
 Torna a: Transistor

2SD882 Transistor

Type Designator: 2SD882
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 40 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 3 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 90 MHz
   Collector Capacitance (Cc): 45 pF
   Forward Current Transfer Ratio (hFE), MIN: 60
   Noise Figure, dB: -
   Package: TO126

Features

  • High current
  • Low saturation voltage
  • Complement to 2SB772

Applications

  • Voltage regulation
  • Relay driver
  • Generic switch
  • Audio power amplifier
  • DC-DC converter

Description

The device is a NPN transistor manufactured by using planar technology resulting in rugged high performance devices.
The complementary PNP type is 2SB772.
