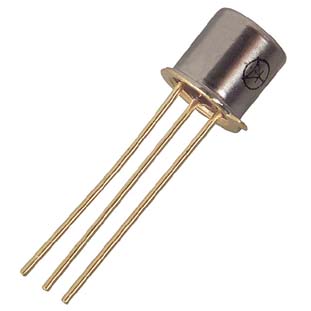

AC127 Transistor NPN

AC127 Transistor

Type Designator: AC127
   Material of Transistor: Ge
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.34 W
   Maximum Collector-Base Voltage |Vcb|: 32 V
   Maximum Collector-Emitter Voltage |Vce|: 12 V
   Maximum Emitter-Base Voltage |Veb|: 10 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 90 °C
   Transition Frequency (ft): 1.5 MHz
   Collector Capacitance (Cc): 140 pF
   Forward Current Transfer Ratio (hFE), MIN: 50
   Noise Figure, dB: -
   Package: TO1
