BD228 Transistor NPN

BD228 Transistor

 Type Designator: BD228
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1.5 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 60 MHz
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -

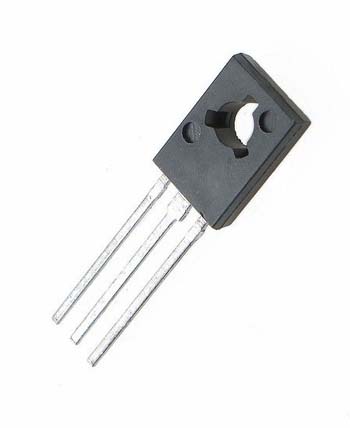

   Package: TO126

DESCRIPTION

• DC Current Gain-: hFE= 40(Min)@ IC= 0.15A
• Complement to Type BD227/229/231

APPLICATIONS

• Designed for use in driver stages in television circuits.
