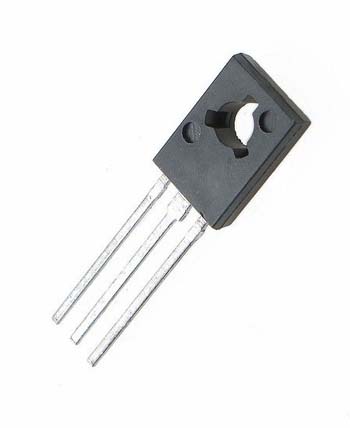

BF458 Transistor NPN
0,37 €
Only 1 in stock
SKU: BF458
BF458 Transistor
Sostituisce: 2SD668
SILICON NPN / 250V / 0.1A / 10W - SEE ALSO: BF 459
Sostituisce: 2SD668
SILICON NPN / 250V / 0.1A / 10W - SEE ALSO: BF 459
BF458 Transistor
Sostituisce: 2SD668
Type Designator: BF458
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 6 W
Maximum Collector-Base Voltage |Vcb|: 250 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN: 26
Noise Figure, dB: -
Package: TO126
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 6 W
Maximum Collector-Base Voltage |Vcb|: 250 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN: 26
Noise Figure, dB: -
Package: TO126
