DTA124EKA Transistor PNP

DTA124EKA Transistor

Type Designator: DTA124EKA
   SMD Transistor Code: 15
   Material of Transistor: Si
   Polarity: Pre-Biased-PNP
   Built in Bias Resistor R1 = 22 kOhm
   Built in Bias Resistor R2 = 22 kOhm

Typical Resistor Ratio R1/R2 = 1
   Maximum Collector Power Dissipation (Pc): 0.2 W
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Emitter-Base Voltage |Veb|: 10 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 140 MHz
   Forward Current Transfer Ratio (hFE), MIN: 56
   Noise Figure, dB: -

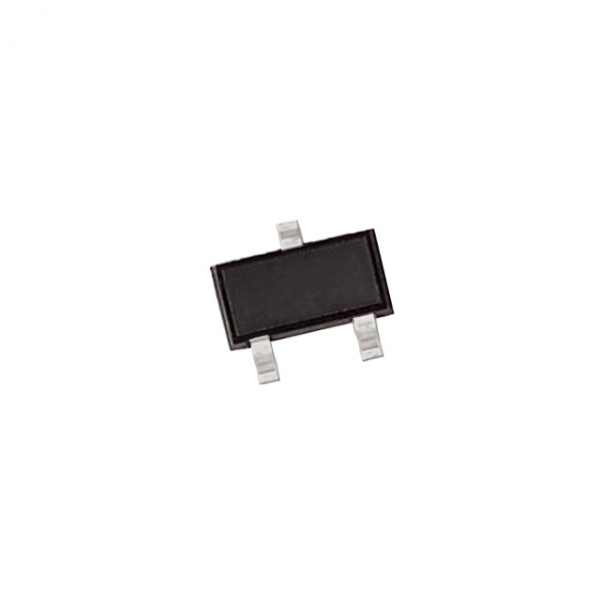

   Package: SC-59
