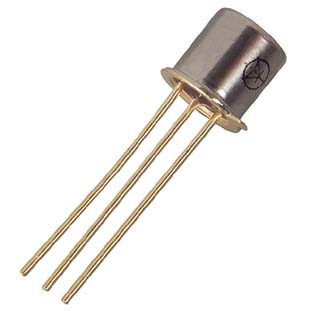

BC107A Transistor NPN
BC107A-9206760-FAR

BC107A Transistor NPN

1,11 €
In Stock
SKU: BC107A-9206760-FAR
BC107A Transistor
  • Polarità transistor:NPN
  • Collector-to-Emitter Breakdown Voltage:45 V
  • Typ Gain Bandwidth ft:150MHZ
  • Power Dissipation Pd:600mW
  • DC Collector Current:200mA
  • DC Current Gain hFE:110
  • Transistor Case Style
    •  Torna a: Transistor

    BC107A Transistor

    Descrizione
    • TRANSISTOR, NPN, TO-18
    • Polarità transistor:NPN
    • Collector-to-Emitter Breakdown Voltage:45 V
    • Typ Gain Bandwidth ft:150MHZ
    • Power Dissipation Pd:600mW
    • DC Collector Current:200mA
    • DC Current Gain hFE:110
    • Transistor Case Style:TO-18
    • N. of Pins:3
    • Tipo corpo:TO-18
    • Corrente, Ic hFE:2mA
    • Max Current Ic:0.1A
    • Max Current Ic Continuous a:0.1A
    • Max Power Dissipation Ptot:600mW
    • Max Voltage Vce Sat:0.25V
    • Min Gain Bandwidth ft:150MHZ
    • Min Hfe:110
    • Configurazione a pin:a
    • Dissipazione di potenza:0.6W
    • Tipo terminazione::Foro passante
    • Tipo transistor:Bipolare
    • Tensione, Vcbo:50V
