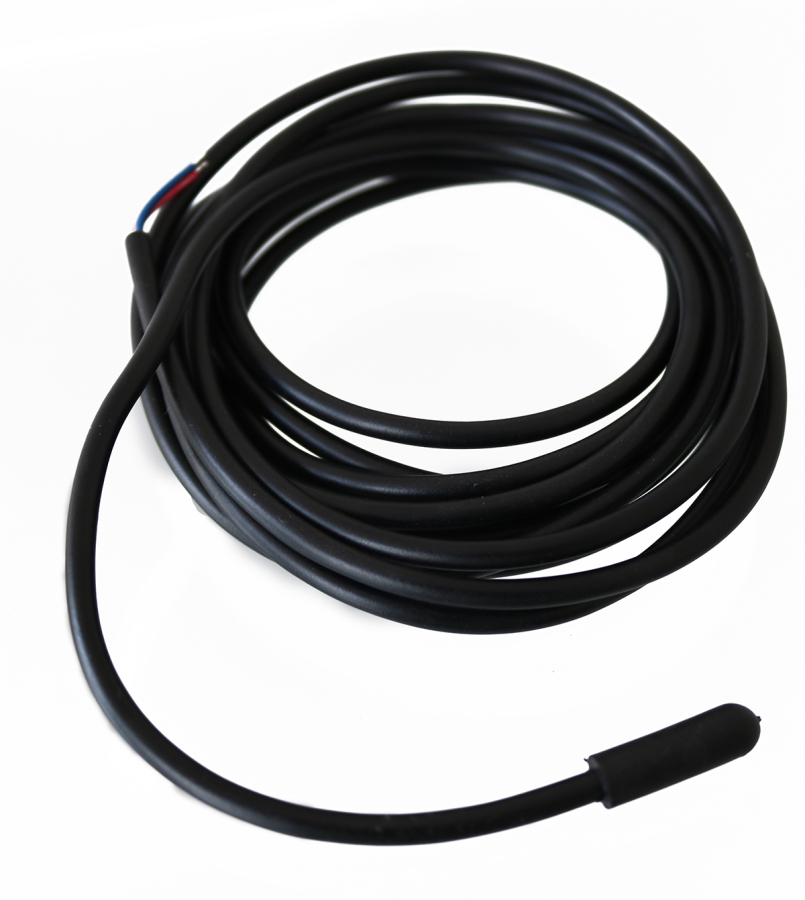

MCO domestic outdoor sensor for MCOEMH7H-EH2

The external sensor for MCO's electric underfloor heating thermostats must be connected directly to the thermostat. The sensor is only used for overheating protection purposes.

For overheating protection, the sensor is placed close to the floor to monitor the floor temperature. Temperature data from the external sensor will not be shown on the display or transmitted via Z-Wave. The values from the external sensor are only used for the internal process of the overheat protection function.



Thermostat overheating protection
NTC R25℃=15KΩ B25℃/50℃=3550K
Length: 3m

The sensor is compatible with MCO Home - Electric Heating Thermostat with Humidity Sensor ( MCOEMH7H-EH2 ).
