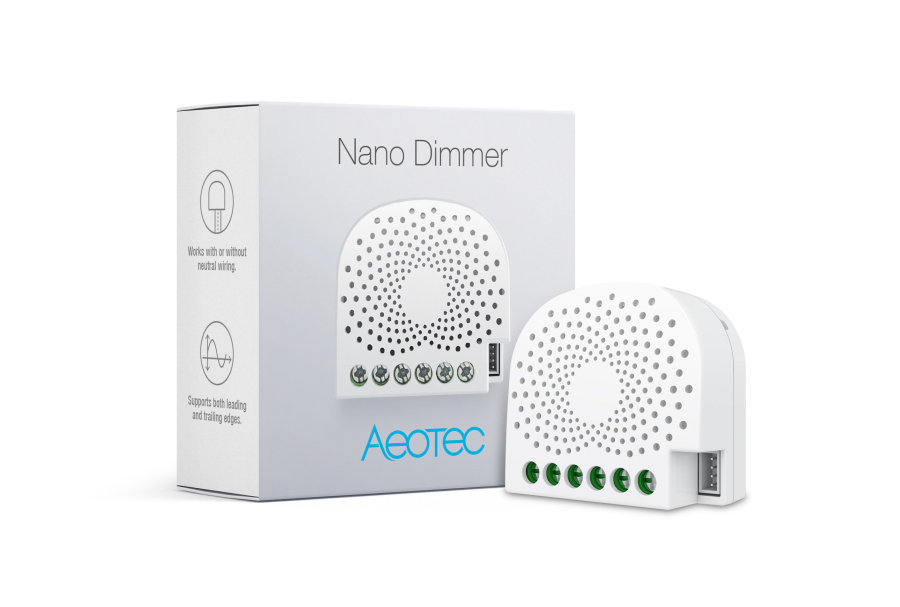

AEOTEC Dimmer Nano

Dettagli

With the AEOTEC Nano Dimmer, switchable and dimmable electrical installations such as lighting or ceiling fans can be integrated into a Z-Wave network. Thus, the connected load can be switched and dimmed both wirelessly via Z-Wave and locally via an existing wall switch. The AEOTEC Nano Dimmer automatically adjusts to the connected lighting and is therefore usable with various types of lighting (LED, dimmable LED, CFL, Fluorescent, Incandescent, Halogen). When combined with an appropriate bypass, it can even dim low-power LEDs and CFLs that consume less than 20 watts.

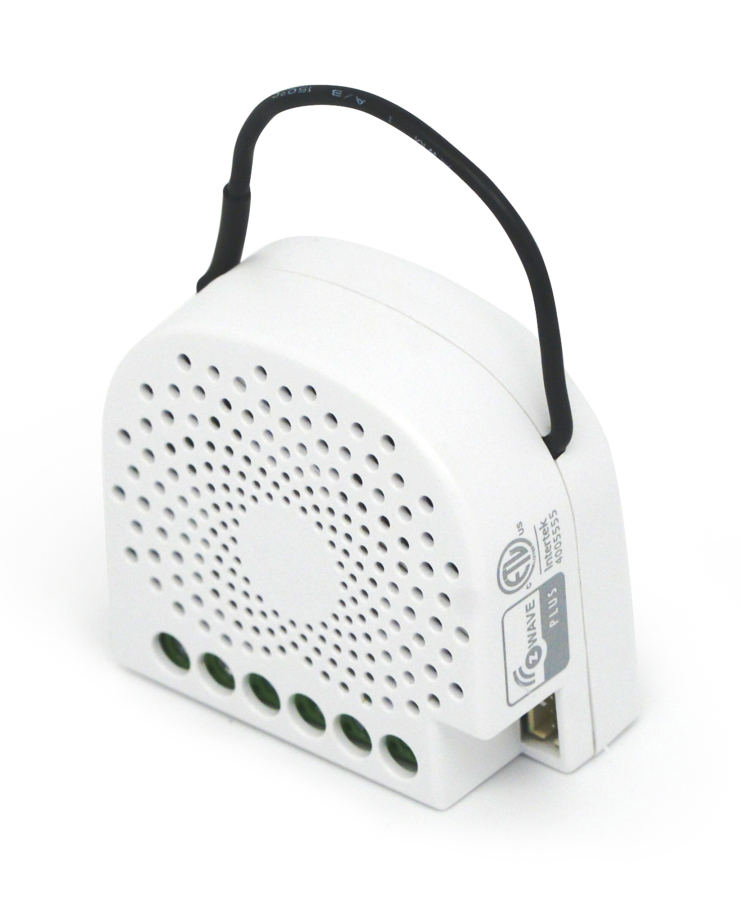

The compact radio module (60% smaller than its Micro Dimmer predecessor) is placed in a wall box just behind the normal switch. The switch is no longer connected directly to the load but acts as an input device for the AEOTEC insert which controls the load. The switch only sends a control signal to the insert which again controls the load. The solution works with all switch designs. You can use a momentary or toggle switch. It is recommended to use wall boxes with a depth of 65mm. But smaller boxes with a depth of only 45 mm can be used even if there is enough space behind the switch. The space available depends on the size of the traditional switch, the size of the wall box and the amount of additional wiring placed in this box.

• Integrate existing installations (lighting, ceiling fans) into a Z-Wave network
• Works with momentary or toggle switches
• Wiring: compatible with 2 and 3 wire systems (with and without neutral)
• Dimensions: 42.5x40x20mm

• Power input: 120 to 240V AC, 50/60Hz.
• Rated current output: 1.2A maximum
• Rated Power Output: 144W maximum (110 volts) and 276W maximum (230 volts)
• Minimum power (Watts):if the load is less than the minimum requirement, Aeotec bypass may need to be installed. 2 wires (without neutral) Resistance load only: min 20W. 3 wires (with neutral)
• Capacitive load: min 11W. Inductive load: no min / max 100W Resistance load: min 10W.
• Z-Wave Plus, 500 Series, Gen5.
