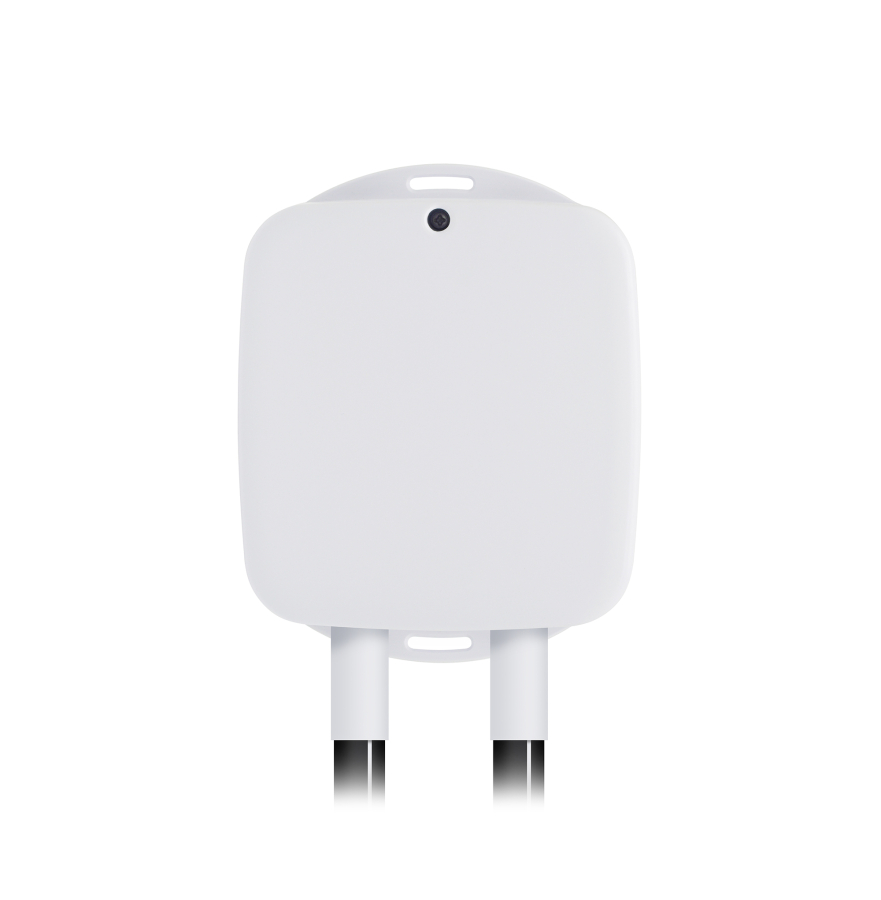

AEOTEC Heavy Duty Smart Switch Gen5

115,00 €
In Stock
SKU: ZW078-C-AEOT
There are major electronic devices and appliances in your home. Large refrigerators and pumps for swimming pools. Hot water systems and electric car chargers. Heavy Duty Smart Switch was created for this. It can power devices that draw up to 40 amps or 9600 Watts of power. Like our plug and play Smart Switches, the Heavy Duty Smart Switch is based on the latest Z-Wave technology: Z-Wave Plus.
 Back to: Modules

AEOTEC Heavy Duty Smart Switch Gen5

There are major electronic devices and appliances in your home. Large refrigerators and pumps for swimming pools. Hot water systems and electric car chargers. Heavy Duty Smart Switch was created for this. It can power devices that draw up to 40 amps or 9600 Watts of power. Like our plug and play Smart Switches, the Heavy Duty Smart Switch is based on the latest Z-Wave technology: Z-Wave Plus.

Technical specifications

Repeater: Yes
Transmission: yes
Power consumption: 1W
Evaluations :
Phase 2 (split phase - USA)
240VAC, 50/60Hz;
Maximum resistance 9600 Watts 40A;
AC 240VAC 5HP motor;
1 stage only (split stage - USA)
120VAC, 50/60Hz;
Maximum resistance of 4800 Watts 40A;
AC Motor 120VAC 5HP;
1 phase (EU / AU)
240VAC, 50/60Hz;
Maximum resistance 9600 Watts 40A;
AC 240VAC 5HP motor;
Minimum Energy Sensor Reading: 2W
Energy reading error rate:
Less than 300W: + -3W
Great or equal to 300W: + -1%
RF Range: 500ft/150m in open air;
10ms period peak current strength of 1440A.
Waterproof rating: IP44
Environmental conditions: indoor and outdoor use;
Altitude up to 2000m;
Operating temperature: 5°C to 40°C;
Max. relative humidity: 80%;
Pollution degree 2.
Product dimensions / dimensions:
5.9 x 4.7 x 1.6 inches
150x119x41mm
Screw size: PM3.0 × 12mm
