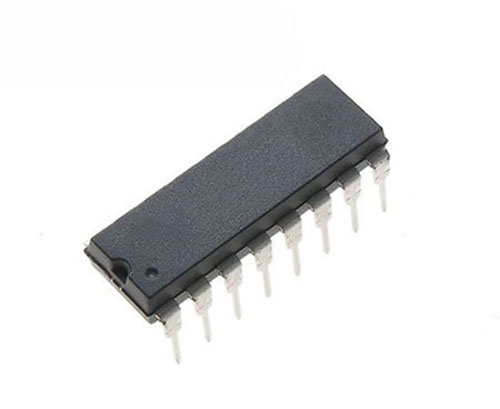

CA3161E Integrated Circuit
CA3161

CA3161E Integrated Circuit

14,58 €
Only 2 in stock
SKU: CA3161-MFAT
Decodificatore/driver BCD (Binary-Coded Decimal) a 7 segmenti.
 Back to: Integrated Circuits

CA3161E Integrated Circuit

CA3161E (BCD to 7-segment converter IC):

  • Function: BCD (Binary-Coded Decimal) to 7-segment decoder/driver.
  • Logic Family: TTL.
  • Supply voltage: Typical 5V (range 4.5V - 5.5V).
  • Output current: Up to 25 mA per segment (compatible with common-anode LED displays).
  • Outputs: 7 open-collector outputs with internal current limiting.
  • Package: DIP-16 (Dual In-line Package, 16 pins).
  • Operating temperature: 0°C to +70°C (commercial version).
  • Typical applications: Driver for 7-segment LED displays in measuring instruments, counters, and digital panels (often paired with the CA3162 A/D converter).
