Sold LM3875TF Integrated Circuit
LM3875TF-1468867-FAR

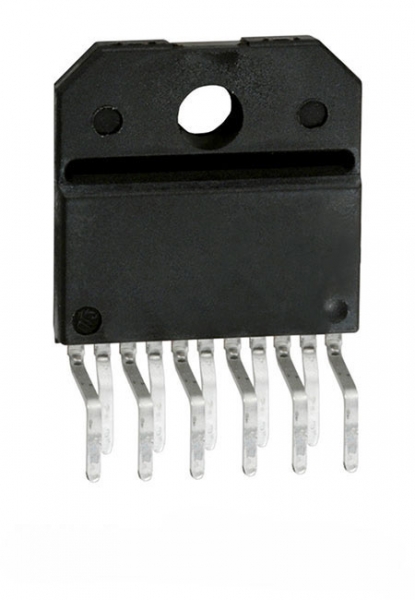

LM3875TF Integrated Circuit

8,44 €
Out of Stock
SKU: LM3875TF-1468867-FAR
LM3875TF IC
  • CIRCUITO INTEGRATO, AMP, AUDIO POTENZA, MONO
  • Amplifier Class: AB
  • N. of Channels: 1
  • Potenza in uscita: 56W
  • Supply Voltage Range: 20V to 84V
    • Notify Me
     Back to: Integrated Circuits

    LM3875TF  IC

    Descrizione:
    • CIRCUITO INTEGRATO, AMP, AUDIO POTENZA, MONO
    • Amplifier Class: AB
    • N. of Channels: 1
    • Potenza in uscita: 56W
    • Supply Voltage Range: 20V to 84V
    • Amplifier Case Style: TO-220
    • N. of Pins: 11
    • Load Impedance: 8 OHM
    • Operating Temperature Range: Da -20°C a +85°C
    • MSL: MSL 1 - Unlimited
    • Larghezza di banda: 8MHz
    • Input Offset Voltage Max: 10mV
    • Load Impedance Min: 8 OHM
    • Output Power Pout: 56W
    • Package / Case: TO-220
    • Power Rating RMS: 56W
    • Velocità di risposta: 11V/µs
    • Supply Voltage Max: 84V
    • Supply Voltage Min: 20V
    • THD + N: 0,06% @ 40W, 8 OHM, V=35V
    • Tipo terminazione: Foro passante
