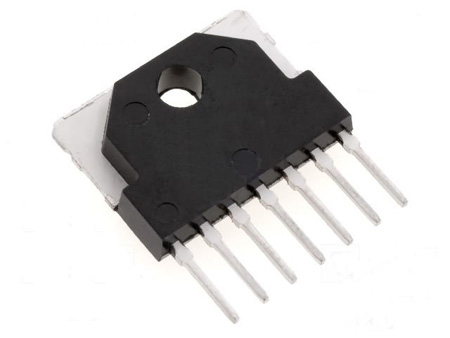

TA8214K Integrated Circuit

Multi Output Voltage Regulator (8.3V output)



The TA8214K is voltage regulator IC, designed for car audio use,has built−in 4 outputs. (fixed 1 output and changed 3 outputs.)

The input−output differential voltage : V DIFis very small. (V DIF= 0.3V (typ.))

Because each outputs consist of PNP transistor. In addition,protection of over voltage, output short and thermal shut down are involved.
