TDA4505M Integrated Circuit
TDA4505M

TDA4505M Integrated Circuit

15,86 €
Only 1 in stock
SKU: TDA4505M-MFAT
Monolithic integrated circuit for video processing and deflection in colour TV receivers.
 Back to: Integrated Circuits

TDA4505M Integrated Circuit

  • Main function: Monolithic integrated circuit for video processing and deflection in colour TV receivers.
  • Typical manufacturer: Philips / NXP.

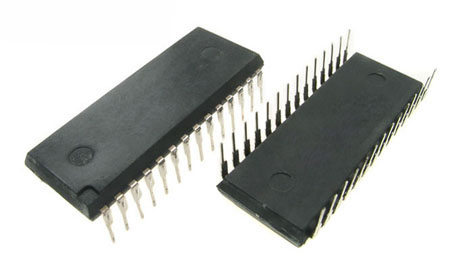

  • Package: DIL28 (28-pin Dual In-Line).
  • Power supply: Typically 12V.
  • Main features:
    • Synchronisation circuit (sync separator).
    • Line oscillator with phase-locked loop (PLL) control.
    • X-ray protection circuit.
    • Basic video signal processing and character insertion (OSD).
    • Vertical and horizontal scan geometry control.
  • Applications: Older generation analogue CRT (cathode-ray tube) televisions.
