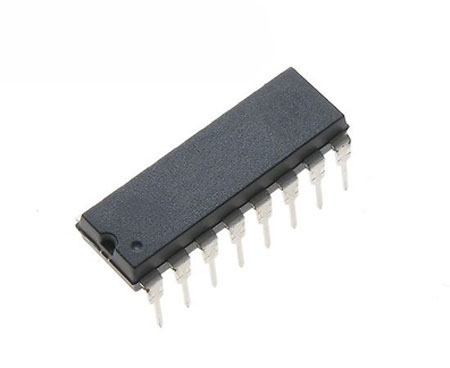

ULN2004A Integrated Circuit

ULN2004A IC

• DARLINGTON ARRAY 7NPN, 2004, DIP16
• Collector-to-Emitter Breakdown Voltage:50V
• Operating Temperature Range:-20°C to +85°C
• No. of Pins:16
• SVHC:No SVHC
• Case Style:DIP
• Device Marking:ULN2004A
• No. of Transistors:7
• Termination Type:Through Hole
• Transistor Polarity:NPN
• Transistor Type:Power Darlington
• Base Number:2004
• IC Generic Number:2004
• Input Type:CMOS, PMOS 6/15V
• Logic Function Number:2004
• Max Current Ic Continuous a:500mA
• Max Input Voltage:15V
• Max Operating Temperature:85°C
• Max Output Current:500mA
• Max Output Voltage:50V
• Min Input Voltage:6V
• Min Temperature Operating:-20°C
• No. of Channels:7
• Output Type:Open Collector
