IRLIZ24N Mosfet
1,43 €
In Stock
SKU: IRLIZ24N-SHU

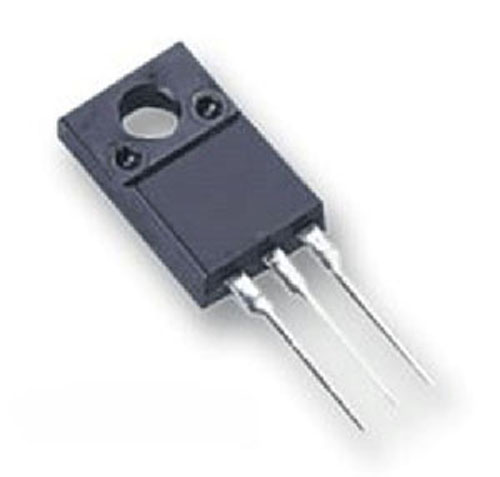

IRLIZ24N MOSFET
55V Single N-Channel HEXFET Power MOSFET in a TO-220 FullPak (Iso) package
55V Single N-Channel HEXFET Power MOSFET in a TO-220 FullPak (Iso) package
IRLIZ24N MOSFET
Descrizione
| VBRDSS (V) | 55 |
| Package | TO-220-3 FP |
| RDS(on) Max 10V (mOhms) | 60.0 |
| ID @ TC = 25C (A) | 14 |
| Package Class | Thru-Hole |
| VGs Max (V) | 16 |
| Qg Typ (nC) | 10.0 |
| Power Dissipation @ TC = 25C (W) | 26 |
| Qual Level | Industrial |
| Circuit | Discrete |
| Rth(JC) (K/W) | 5.8 |
| RoHS | Yes |
| Halogen-Free | No |
| 1k Budgetary Pricing | 0.413 |
| Qgd Typ (nC) | 5.7 |
| RDS(on) Max 4.5V (mOhms) | 105.0 |
| ID @ TC = 100C (A) | 9.9 |
| Technology | Planar Mosfet |
