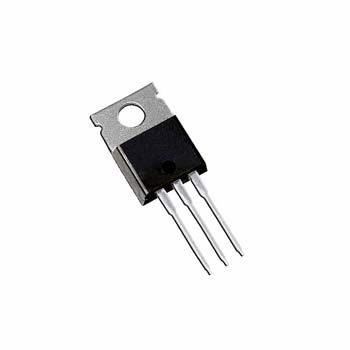

STP60NF06 Mosfet

STP60NF06 MOSFET

Descrizione



• MOSFET, N, TO-220
• Transistor Polarity:N Channel
• Continuous Drain Current Id:60A
• Drain Source Voltage Vds:60V
• On Resistance Rds(on):16mohm
• Rds(on) Test Voltage Vgs:10V
• Threshold Voltage Vgs Typ:1V
• Operating Temperature Range:-55°C to +175°C
• Transistor Case Style:TO-220
• No. of Pins:3
• SVHC:No SVHC (15-Dec-2010)
• Alternate Case Style:SOT-78B
• Current Id Max:60A
• Device Marking:STP60NF06
• On State resistance @ Vgs = 10V:16mohm
• Package / Case:TO-220
• Power Dissipation Pd:110W
• Pulse Current Idm:240A
• Termination Type:Through Hole
• Transistor Type:
• Voltage Vds:60V
• Voltage Vds Typ:60V
• Voltage Vgs Max:4V
• Voltage Vgs Rds on Measurement:10V
