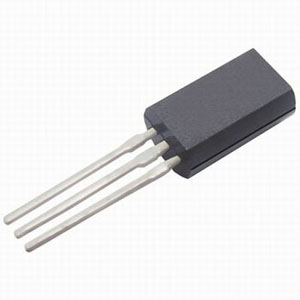

2SA1124 Transistor

2SA1124 Transistor

Type Designator: 2SA1124
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 1 W
   Maximum Collector-Base Voltage |Vcb|: 150 V
   Maximum Collector-Emitter Voltage |Vce|: 150 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.05 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 200 MHz
   Forward Current Transfer Ratio (hFE), MIN: 65
   Noise Figure, dB: -
   Package: TO92
