2SA1146 Transistor

2SA1146 Transistor

Type Designator: 2SA1146
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 100 W
   Maximum Collector-Base Voltage |Vcb|: 140 V
   Maximum Collector-Emitter Voltage |Vce|: 140 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Transition Frequency (ft): 70 MHz
   Collector Capacitance (Cc): 220 pF
   Forward Current Transfer Ratio (hFE), MIN: 120
   Noise Figure, dB: -

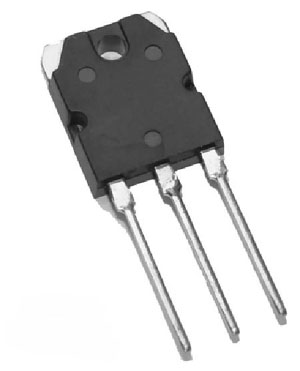

   Package: TOP3
