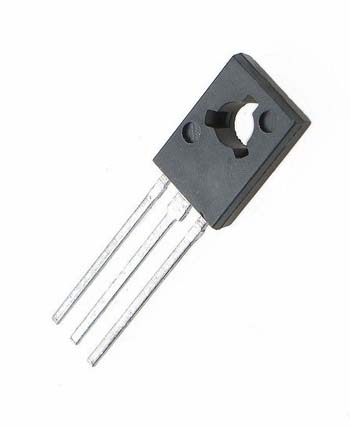

2SA1249 Transistor

2SA1249 Transistor

Type Designator: 2SA1249
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 180 V
   Maximum Collector-Emitter Voltage |Vce|: 16 V
   Maximum Emitter-Base Voltage |Veb|: 15 V
   Maximum Collector Current |Ic max|: 1.5 A
   Max. Operating Junction Temperature (Tj): 135 °C
   Transition Frequency (ft): 120 MHz
   Collector Capacitance (Cc): 24 pF
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: TO126
