2SA1360 Transistor

2SA1360 Transistor

Type Designator: 2SA1360
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 5 W
   Maximum Collector-Base Voltage |Vcb|: 150 V
   Maximum Collector-Emitter Voltage |Vce|: 150 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.05 A
   Max. Operating Junction Temperature (Tj): 135 °C
   Transition Frequency (ft): 200 MHz
   Collector Capacitance (Cc): 2.5 pF
   Forward Current Transfer Ratio (hFE), MIN: 70
   Noise Figure, dB: -

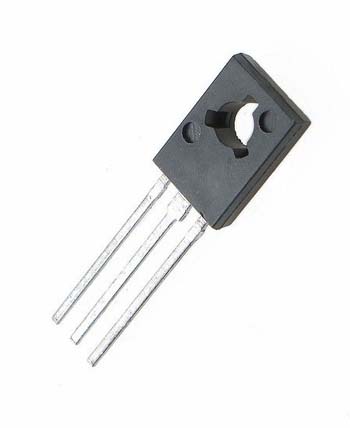

   Package: TO126

Audio Frequency Amplifier Applications

• Complementary to 2SC3423
• Small collector output capacitance: Cob = 2.5 pF (typ.)
• High transition frequency: fT = 200 MHz (typ.)
