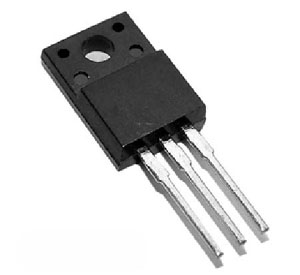

2SA1659 Transistor
2SA1659-XAR

2SA1659 Transistor

2,83 €
Only 6 in stock
SKU: 2SA1659-XAR
2SA1659 Transistor
  • With TO-220F package
  • Complement to type , 2SC4370, 2SC4370A
  • High transition frequency fT
    •  Back to: Transistor

    2SA1659 Transistor

    Type Designator: 2SA1659
       Material of Transistor: Si
       Polarity: PNP
       Maximum Collector Power Dissipation (Pc): 20 W
       Maximum Collector-Base Voltage |Vcb|: 160 V
       Maximum Collector-Emitter Voltage |Vce|: 145 V
       Maximum Emitter-Base Voltage |Veb|: 7 V
       Maximum Collector Current |Ic max|: 1.5 A
       Max. Operating Junction Temperature (Tj): 175 °C
       Transition Frequency (ft): 100 MHz
       Forward Current Transfer Ratio (hFE), MIN: 60
       Noise Figure, dB: -
       Package: TO202

    DESCRIPTION

    • With TO-220F package
    • Complement to type , 2SC4370, 2SC4370A
    • High transition frequency fT

    APPLICATIONS

    • High voltage applications
