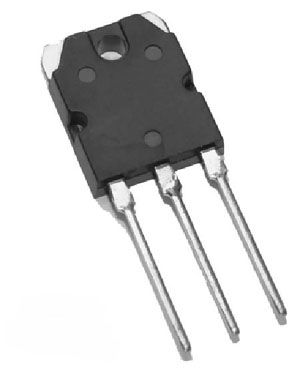

2SA1941 Transistor
2SA1941-XAR

2SA1941 Transistor

1,83 €
Only 9 in stock
SKU: 2SA1941-XAR
2SA1941 Transistor

Power Amplifier Applications
Complementary to 2SC5198
 Back to: Transistor

2SA1941 Transistor

Type Designator: 2SA1941
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 100 W
   Maximum Collector-Base Voltage |Vcb|: 140 V
   Maximum Collector-Emitter Voltage |Vce|: 140 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 30 MHz
   Collector Capacitance (Cc): 320 pF
   Forward Current Transfer Ratio (hFE), MIN: 55
   Noise Figure, dB: -
   Package: TO3PN

Power Amplifier Applications

  • High breakdown voltage: VCEO= −140 V (min)
  • Complementary to 2SC5198
  • Recommended for 70-W high-fidelity audio frequency amplifieroutput stage.
