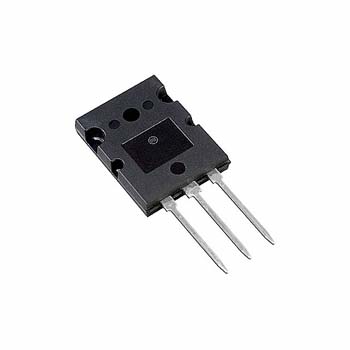

2SA1943 Transistor
2,18 €
Only 5 in stock
SKU: 2SA1943-XAR
2SA1943 Transistor
High-Fidelity Audio Output Amplifier
With TO-264 package
Complement to 2SC5200
High-Fidelity Audio Output Amplifier
With TO-264 package
Complement to 2SC5200
2SA1943 Transistor
Type Designator: 2SA1943
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 250 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 17 A
Forward Current Transfer Ratio (hFE), MIN: 55
Noise Figure, dB: -
Package: TO264
Power Amplifier Applications
- High breakdown voltage: VCEO = 230 V (min)
- Complementary to 2SC5200
- Suitable for use in 100-W high fidelity audio amplifier’s output stage
