2SA940 Transistor

2SA940 Transistor

 Type Designator: 2SA940
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 25 W
   Maximum Collector-Base Voltage |Vcb|: 150 V
   Maximum Collector-Emitter Voltage |Vce|: 150 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1.5 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 4 MHz
   Collector Capacitance (Cc): 110 pF
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -

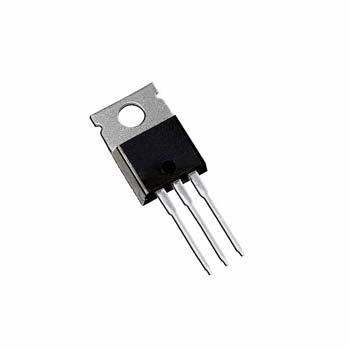

   Package: TO220

VERTICAL DEFLECTION OUTPUT

Complementary to 2SC2073
