2SA965 Transistor PNP
Type Designator: 2SA965
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.8 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 40 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Noise Figure, dB: -

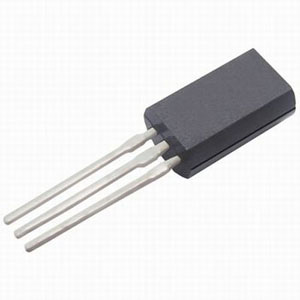

Package: TO92
Power amplifier applications
Complementary to 2SC2235
