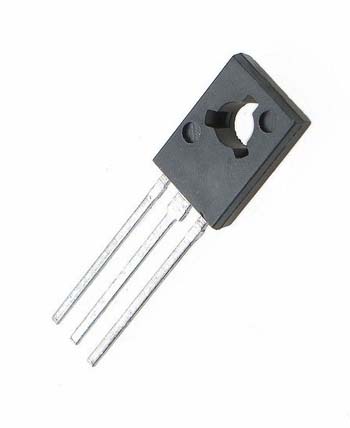

2SB649A Transistor
0,43 €
Only 7 in stock
SKU: 2SB649A-XAR
2SB649A Transistor
SI-P NF/S/Vid-L 180V 15A 100W 140MHz
SI-P NF/S/Vid-L 180V 15A 100W 140MHz
2SB649A Transistor
Type Designator: 2SB649A
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 20 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 140 MHz
Collector Capacitance (Cc): 27 pF
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: -
Package: TO126
