2SC1567 Transistor

2SC1567 Transistor

Type Designator: 2SC1567
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 3 W
   Maximum Collector-Base Voltage |Vcb|: 100 V
   Maximum Collector-Emitter Voltage |Vce|: 90 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 0.12 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 40 MHz
   Collector Capacitance (Cc): 20 pF
   Forward Current Transfer Ratio (hFE), MIN: 20
   Noise Figure, dB: -

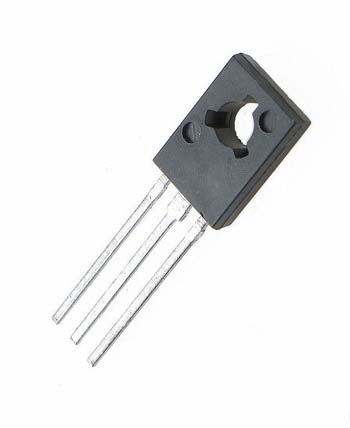

   Package: TO126
