2SC2525 Transistor Audio amplifier with MT-200

2SC2525 Transistor Audio amplifier with MT-200

Type Designator: 2SC2525
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 120 W
   Maximum Collector-Base Voltage |Vcb|: 120 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 12 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 40 MHz
   Collector Capacitance (Cc): 180 pF
   Forward Current Transfer Ratio (hFE), MIN: 60
   Noise Figure, dB: -

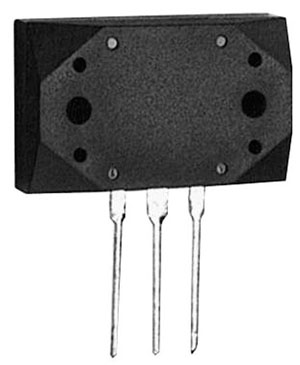

   Package: MT-200
