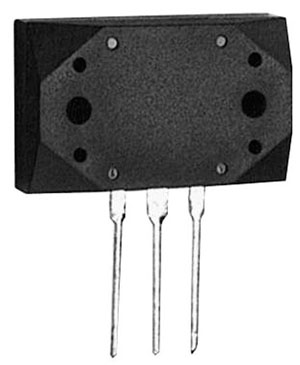

2SC2565 Transistor
2SC2565-XAR

2SC2565 Transistor

8,88 €
Only 4 in stock
SKU: 2SC2565-XAR
2SC2565 Transistor
Sostituisce: 2SC2588A , 2SC2525 , 2SC2526
With MT-200 package
Complement to type 2SA1095
High breakdown voltage
High transition frequency
 Back to: Transistor

2SC2565 Transistor

Type Designator: 2SC2565
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 150 W
   Maximum Collector-Base Voltage |Vcb|: 160 V
   Maximum Collector-Emitter Voltage |Vce|: 160 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 15 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 30 MHz
   Collector Capacitance (Cc): 200 pF
   Forward Current Transfer Ratio (hFE), MIN: 55
   Noise Figure, dB: -
   Package: MT-200

Sostituisce: 2SC2588A , 2SC2525 , 2SC2526

DESCRIPTION

  • Complement to type 2SA1095
  • High breakdown voltage
  • High transition frequency

APPLICATIONS

  • Power amplifier applications
  • Recommended for 100W high-fidelity audio frequency amplifer output stage
