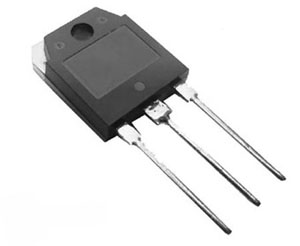

2SC2581 Transistor
Type Designator: 2SC2581
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Collector Capacitance (Cc): 250 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Noise Figure, dB: -
Package: TO218
AUDIO POWER AMPLIFIER
- High Current Capability
- High Power Dissipation
- Complementary to 2SA1106
