2SC2682 Transistor

• Audio frequency power amplifier; high frequency power amplifier applications

 Type Designator: 2SC2682
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 8 W
   Maximum Collector-Base Voltage |Vcb|: 180 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 80 MHz
   Collector Capacitance (Cc): 3.5 pF
   Forward Current Transfer Ratio (hFE), MIN: 200
   Noise Figure, dB: -

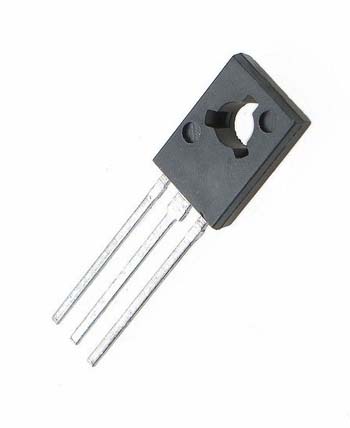

   Package: TO126
