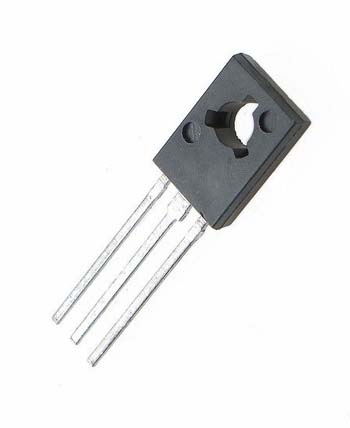

2SC2690 Transistor

2SC2690 Transistor

Use in audio and radio Frequency power amplifiers.

2SC2690 = 2SC2824

DESCRIPTION

• These products are general purpose transistors designed for use in audio and radio frequency power amplifiers.

FEATURES

• Suitable for use in driver stage of 50 to 100 W audio amplifiers and output stage of TV vertical deflection circuit.
• High voltage and high fT VCEO = 120 V (2SC2690) / 160 V (2SC2690A) fT = 175 MHz (VCE = 5.0 V, IC = 0.2 A)
• Complementary to the 2SA1220 and 2SA1220A PNP transistors

Datasheet.pdf
