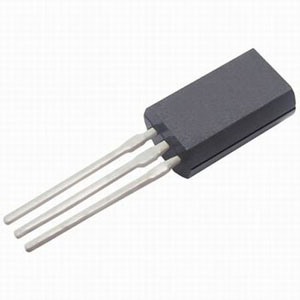

2SC2705 Transistor
2SC2705-XAR

2SC2705 Transistor

0,50 €
Only 10 in stock
SKU: 2SC2705-XAR
2SC2705 Transistor SI-N
Audio Frequency Amplifier Applications
  • Small collector output capacitance: Cob = 1.8 pF (typ.)
  • High transition frequency: fT = 200 MHz (typ.)
  • Complementary to 2SA1145.
    •  Back to: Transistor

    2SC2705 Transistor

    Type Designator: 2SC2705
       Material of Transistor: Si
       Polarity: NPN
       Maximum Collector Power Dissipation (Pc): 0.8 W
       Maximum Collector-Base Voltage |Vcb|: 150 V
       Maximum Emitter-Base Voltage |Veb|: 5 V
       Maximum Collector Current |Ic max|: 0.05 A
       Max. Operating Junction Temperature (Tj): 150 °C
       Transition Frequency (ft): 200 MHz
       Collector Capacitance (Cc): 1.8 pF
       Forward Current Transfer Ratio (hFE), MIN: 80
       Noise Figure, dB: -
       Package: TO92

    Audio Frequency Amplifier Applications

    • Small collector output capacitance: Cob = 1.8 pF (typ.)
    • High transition frequency: fT = 200 MHz (typ.)
    • Complementary to 2SA1145.
