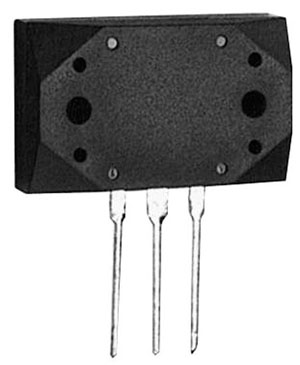

2SC2922 Transistor
2SC2922-XAR

2SC2922 Transistor

5,53 €
Only 4 in stock
SKU: 2SC2922-XAR
2SC2922 Transistor
  • TRANSISTOR, NPN, MT-200
  • Collector Emitter Voltage V(br)ceo: 180V
  • Transition Frequency Typ ft: 50MHZ
  • Power Dissipation Pd: 200 W
  • DC Collector Current: 17A
    •  Back to: Transistor

    2SC2922 Transistor

    Descrizione

    • TRANSISTOR, NPN, MT-200
    • Polarità transistor: NPN
    • Collector Emitter Voltage V(br)ceo: 180V
    • Transition Frequency Typ ft: 50MHZ
    • Power Dissipation Pd: 200 W
    • DC Collector Current: 17A
    • DC Current Gain hFE: 50
    • Transistor Case Style: MT-200
    • N. of Pins: 3
    • Av Current Ic: 17A
    • Collector Emitter Voltage Vces: 2 V
    • Continuous Collector Current Ic Max: 17A
    • Current Ib: 5A
    • Current Ic Continuous a Max: 17A
    • Corrente, Ic hFE: 8A
    • Dispositivo di marcatura: 2SC2922
    • Full Power Rating Temperature: 25°C
    • Gain Bandwidth ft Typ: 50MHZ
    • Hfe Min: 30
    • Junction Temperature Tj Max: 150°C
    • N. of Transistors: 1
    • Package / Case: MT-200
    • Power Dissipation Pd: 200 W
    • Power Dissipation Ptot Max: 200 W
    • Pulsed Current Icm: 16A
    • Tipo terminazione: Foro passante
    • Tensione, Vcbo: 180V
