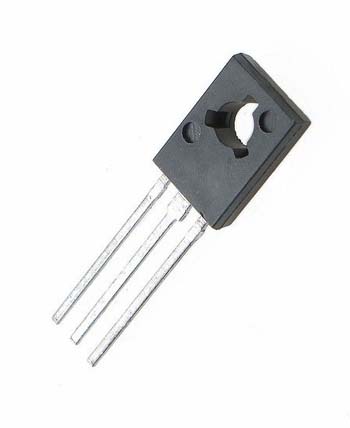

2SC3148 Transistor

2SC3148 Transistor

Type Designator: 2SC3148
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 40 W
   Maximum Collector-Base Voltage |Vcb|: 900 V
   Maximum Collector-Emitter Voltage |Vce|: 800 V
   Maximum Emitter-Base Voltage |Veb|: 7 V
   Maximum Collector Current |Ic max|: 3 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 10
   Noise Figure, dB: -
   Package: TO220

APPLICATIONS

• Switching regulator and high voltage switching applications
• High speed DC-DC converter applications
