2SC3264 Transistor

2SC3264 Transistor

Type Designator: 2SC3264
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 200 W
   Maximum Collector-Base Voltage |Vcb|: 230 V
   Maximum Collector-Emitter Voltage |Vce|: 230 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 17 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 60 MHz
   Forward Current Transfer Ratio (hFE), MIN: 50
   Noise Figure, dB: -

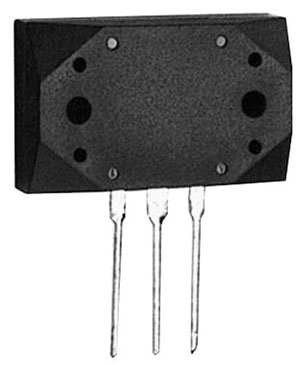

   Package: MT-200

Sostituisce: 2SC2564 , 2SC2773 , 2SC2838 , 2SC3546

Silicon NPN Epitaxial Planar Transistor(Audio and General Purpose)
