2SC3298 Transistor

2SC3298 Transistor

Type Designator: 2SC3298
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 20 W
   Maximum Collector-Base Voltage |Vcb|: 160 V
   Maximum Collector-Emitter Voltage |Vce|: 160 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 100 MHz
   Collector Capacitance (Cc): 25 pF
   Forward Current Transfer Ratio (hFE), MIN: 70
   Noise Figure, dB: -

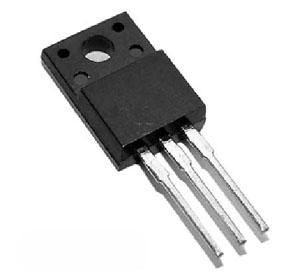

   Package: TO220

DESCRIPTION

• Complement to type 2SA1306, 2SA1306A, 2SA1306B

APPLICATIONS

• Power amplifier applications
• Driver stage amplifier applications
