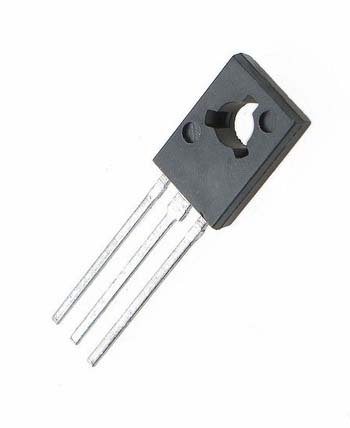

2SC3421 Transistor

2SC3421 Transistor

Type Designator: 2SC3421
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 120 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 120 MHz
   Collector Capacitance (Cc): 15 pF
   Forward Current Transfer Ratio (hFE), MIN: 80
   Noise Figure, dB: -
   Package: ISO126

Audio Frequency Power Amplifier Applications

• Complementary to 2SA1358
• Suitable for driver of 60 to 80 watts audio amplifier
• High breakdown voltage
