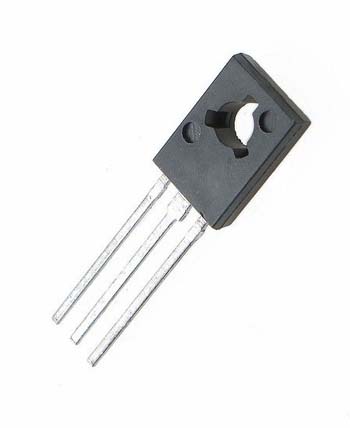

2SC3423 Transistor

2SC3423 Transistor

 Type Designator: 2SC3423
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 5 W
   Maximum Collector-Base Voltage |Vcb|: 150 V
   Maximum Collector-Emitter Voltage |Vce|: 150 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.05 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 200 MHz
   Collector Capacitance (Cc): 1.8 pF
   Forward Current Transfer Ratio (hFE), MIN: 80
   Noise Figure, dB: -
   Package: ISO126

Audio Frequency Power Amplifier Applications

• Complementary to 2SA1360
• Small collector output capacitance: Cob = 1.8 pF (typ.)
• High transition frequency: fT = 200 MHz (typ.)
