2SC3996 Transistor

2SC3996 Transistor

Type Designator: 2SC3996
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 180 W
   Maximum Collector-Base Voltage |Vcb|: 1500 V
   Maximum Collector-Emitter Voltage |Vce|: 800 V
   Maximum Emitter-Base Voltage |Veb|: 7 V
   Maximum Collector Current |Ic max|: 15 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Forward Current Transfer Ratio (hFE), MIN: 10
   Noise Figure, dB: -

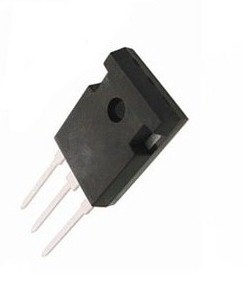

   Package: TO264
