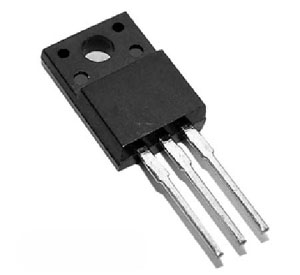

2SC4370A Transistor
2SC4370A-XAR

2SC4370A Transistor

1,00 €
Only 10 in stock
SKU: 2SC4370A-XAR
2SC4370A Transistor
  • With TO-220F package
  • Complement to type 2SA1659
  • High transition frequency
    •  Back to: Transistor

    2SC4370A Transistor

     Type Designator: 2SC4370AP
       Material of Transistor: Si
       Polarity: NPN
       Maximum Collector Power Dissipation (Pc): 20 W
       Maximum Collector-Base Voltage |Vcb|: 180 V
       Maximum Collector-Emitter Voltage |Vce|: 180 V
       Maximum Emitter-Base Voltage |Veb|: 5 V
       Maximum Collector Current |Ic max|: 1.5 A
       Max. Operating Junction Temperature (Tj): 150 °C
       Forward Current Transfer Ratio (hFE), MIN: 70
       Noise Figure, dB: -
       Package: TO220

    DESCRIPTION

    • With TO-220F package
    • Complement to type 2SA1659
    • High transition frequency

    APPLICATIONS

    • High voltage applications
