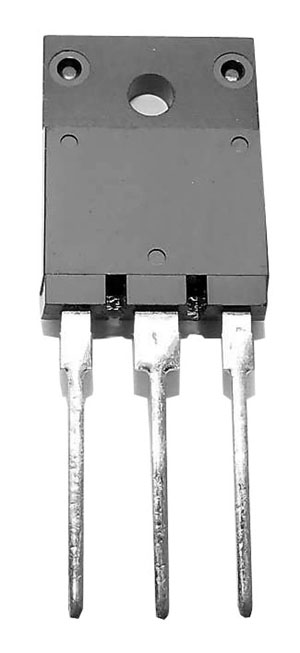

2SC4386 Transistor
2SC4386-XAR

2SC4386 Transistor

3,05 €
Only 5 in stock
SKU: 2SC4386-XAR
2SC4386 Transistor
Application: Audio and general purpose
 Back to: Transistor

2SC4386 Transistor

Type Designator: 2SC4386
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 75 W
   Maximum Collector-Base Voltage |Vcb|: 160 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Collector Current |Ic max|: 8 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 20 MHz
   Forward Current Transfer Ratio (hFE), MIN: 45
   Noise Figure, dB: -

DESCRIPTION:
  • With TO-3PML package
  • Complement to type 2SA1671

APPLICATIONS:
  • Audio and general purpose
