2SC4550 Transistor
FOR HIGH-SPEED SWITCHING
2SC4550 Transistor
Type Designator: 2SC4550
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
Noise Figure, dB: -

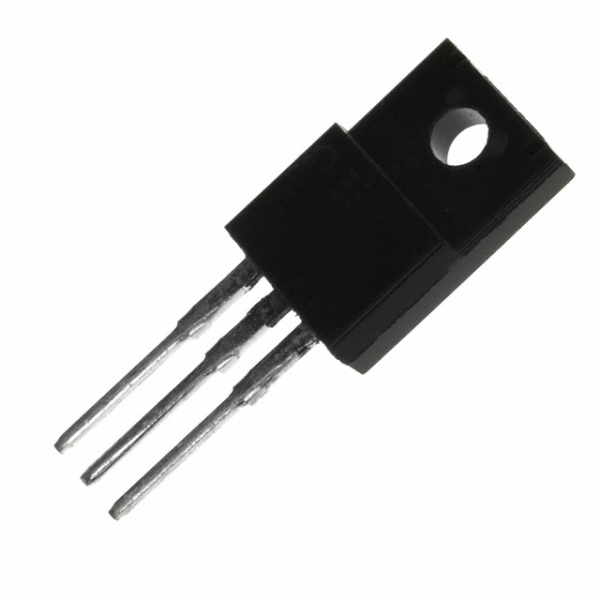

Package: TO220
FOR HIGH-SPEED SWITCHING
The 2SC4550 is a power transistor developed for high-speed switching and features low VCE(sat) and high hFE. This transistor is ideal for use in drivers such as DC/DC converters and actuators.
In addition, a small resin-molded insulation type package contributes to high-density mounting and reduction of mounting cost.
FEATURES
- High hFE and low VCE(sat): hFE ≥ 100 (VCE = 2 V, IC = 1.5 A) VCE(sat) ≤ 0.3 V (IC = 4 A, IB = 0.2 A)
- Mold package that does not require an insulating board or insulation bushing
